FIP 737-8 AP & Trims Consolidated

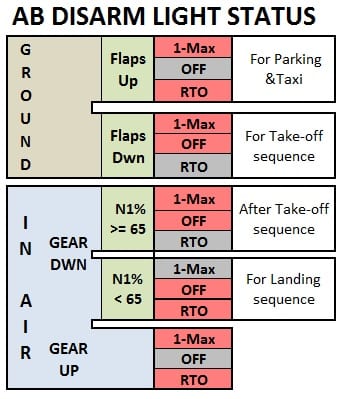

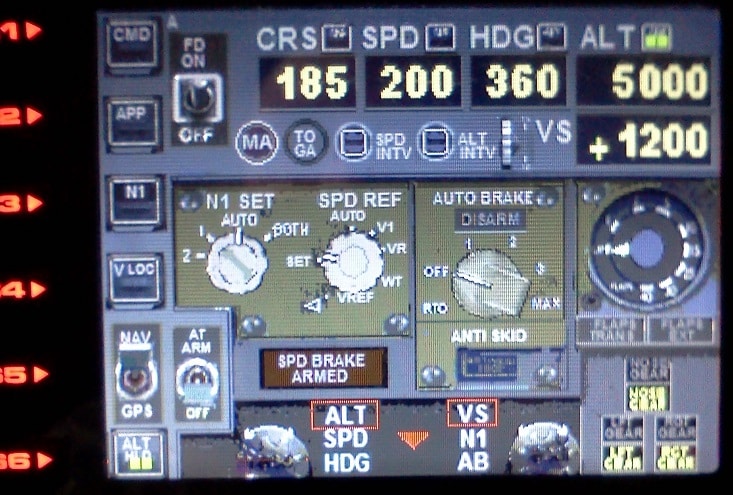

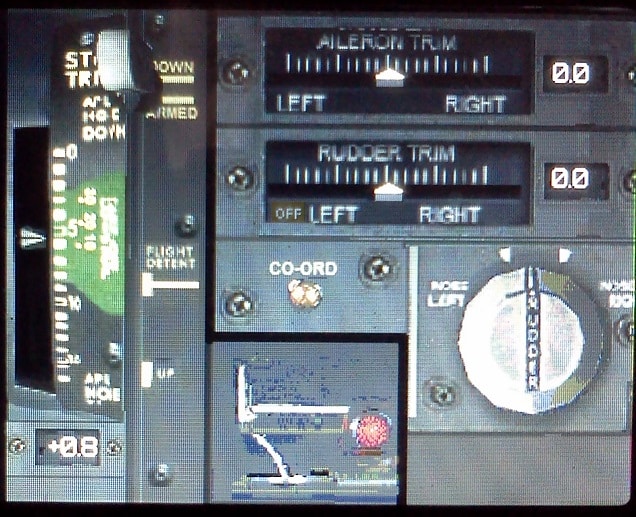

This consolidated version incorporates the original package titled plus the two subsequent additions to it…i.e. If you have not downloaded the original version then you need only download this file which incorporates the two updates. Designed for the FSX default 737-800 There are 4 xml gauges, three being formated to operate as one gauge displaying the AP functions with the rotary knobs having multiple purposes. With the set of 3, there is functionality of – AP master/CMD A, ALT selection and Hold, VS selection, HDG selection and Hold, AT Arm, SPD/IAS selection and Hold, CRS (display only), Vor Loc/NAV Hold, Nav/GPS switch, APR Hold, N1 selection (both engines only) and N1 Hold, Auto Brake adjustment, Flaps position indicator, Anti Skid In-Op light, Flight Director switch, MA light, Landing Gear red and green status lights, Speed Ref knob (non functional / eye candy only) and AB Disarm light. The 4th gauge displays the pitch trim, aileron and rudder trim and spoiler/speed brake handle (FIP button 1= off, 2= flight detent, 3= full up) and parking brake (FIP button 6). A light has also been added to show when Auto Rudder/Co-ordination is operative. (FIP button 5)
